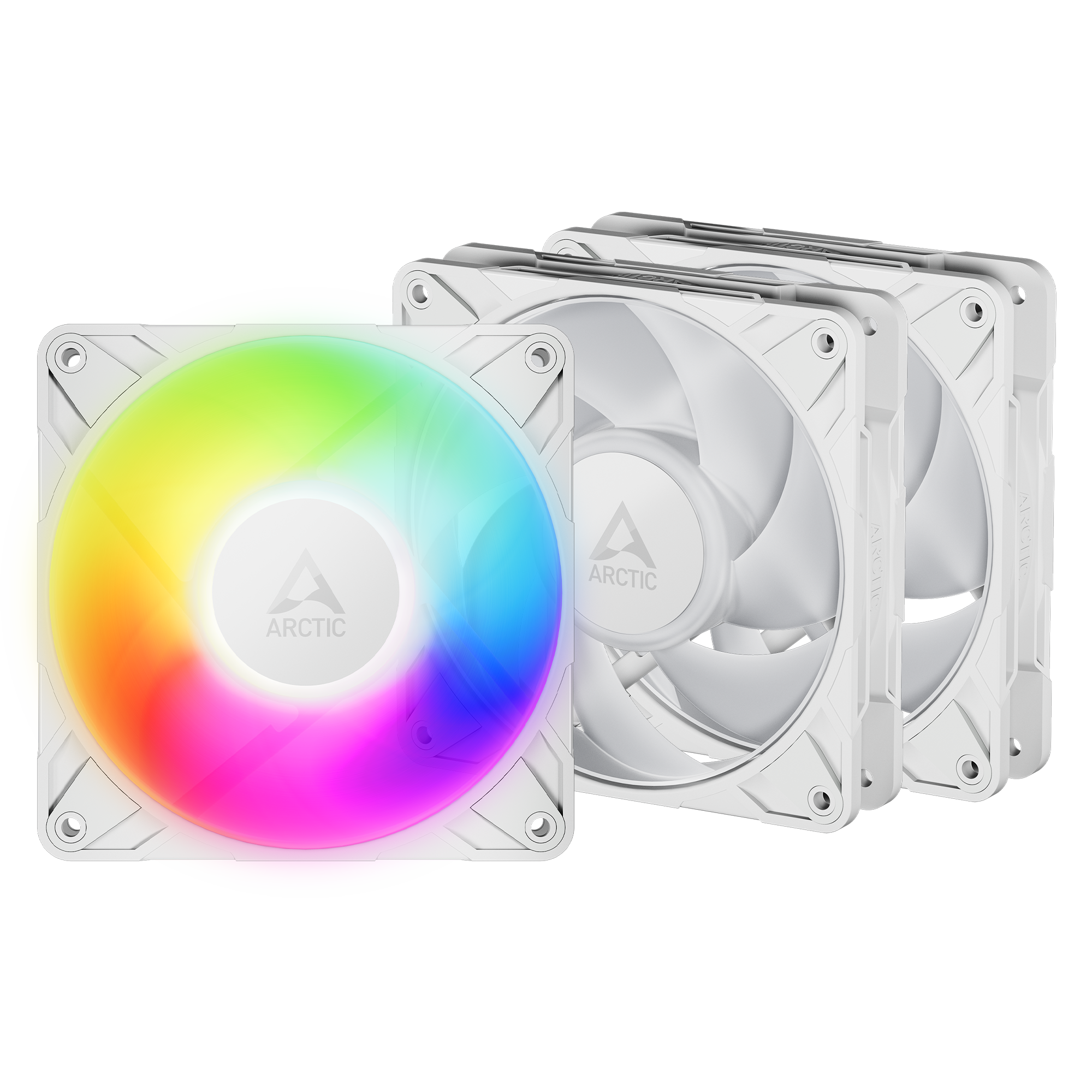

Arctic – P12 Pro A-RGB – White (Pack of 3)
Login to view prices
Out of stock
Description
Product Features
- Efficient Performance at High Air Resistance:- Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
- Maximum Performance, Redefined:- Revised fan blade design for an optimal balance of performance and smooth operation.
- Optimized Bearing-Shaft Design (FDB):- A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
- Automated Two-Plane Balancing:- An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.
- SOTA Microcontroller:- Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
- More Power – Less Noise:- The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
- Minimum Gap Dimensions for Maximum Efficiency:- Enables higher static pressure and maximum airflow efficiency.
- PST-PWM Based Synchronised Fan Control:- An additional PWM connector allows multiple fans to be synchronised in series using a single header.
Specifications
| Brand | Arctic |
| Model | P12 Pro A-RGB (White)-3 Pack |
| Warranty | 6 Years |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 120 (L) x 140 (W) x 25 (H) mm |
| Net Weight | 185 g |
| Fan Speed | 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| LEDs | 12x A-RGB Gen2 LEDs |
| Current|Voltage | 0.40 A | 5 V DC |
| Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
